1. The Operational Context: Polyamide 6.6 Performance Mechanics
When running commercial auto upholstery or heavy footwear assembly lines at velocities exceeding 2,500 RPM, friction at the needle eye generates thermal spikes capable of melting unlubricated fibers. Tex 70 bonded nylon thread, formulated from continuous filament Polyamide 6.6, provides the baseline tensile strength required for these high-stress operations.

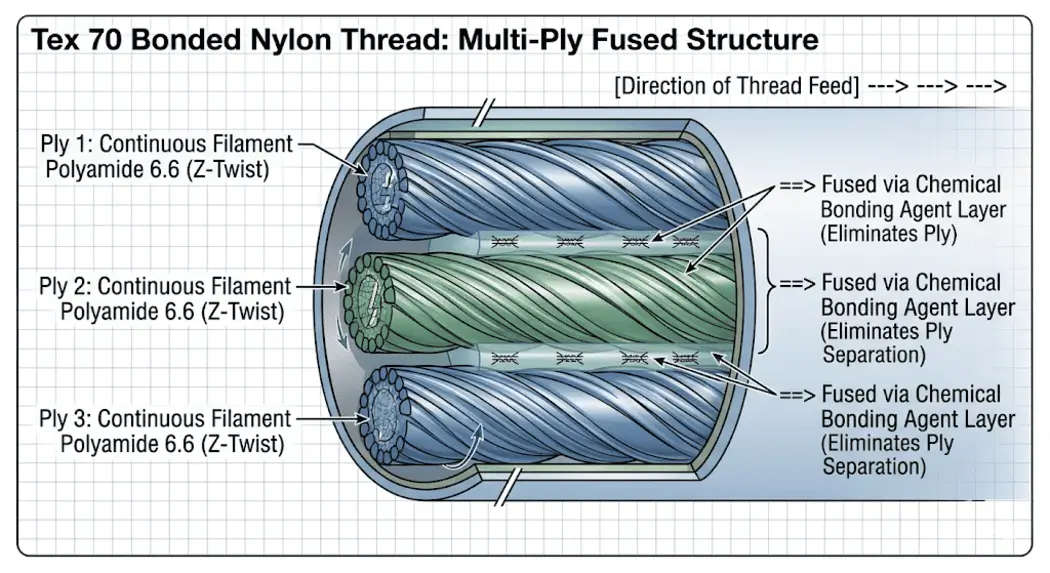

During the manufacturing phase, the individual Z-twist plies are fused using a proprietary chemical bonding agent. This uniform bond eliminates untwisting, fraying, and directional plucking under the extreme rotational forces generated by industrial rotary hooks. By preserving structural cohesion, this bonded thread prevents skipped stitches and mechanical downtime, directly securing your workshop’s profitability on 4oz to 8oz leather assemblies.
2.What Needle Size Do I Use for Tex 70 Bonded Nylon Thread?
Industrial needle selection for Tex 70 bonded nylon thread must strictly adhere to the physical clearance ratios required to form a clean loop at the rotary hook. The calibrated specification for this gauge is an Industrial Size 16 to 18 (Metric 100 to 110).
Selecting a needle below Size 16 (Metric 100) restricts the clearance within the needle eye. As the Polyamide 6.6 filament passes through an undersized eye at full workshop velocity, the bonding layer is scraped away, initiating localized friction, heat accumulation, and eventual tensile failure. Conversely, deploying a needle larger than Size 18 (Metric 110) creates excessive puncture holes in leather or vinyl, compromising structural integrity and allowing moisture penetration.
3.How Do I Adjust Machine Tension for Tex 70 Thread?
Calibrating an industrial drop-feed or compound-feed assembly for Tex 70 thread requires balancing the upper tension disc assembly with the bobbin case leaf spring. Follow this operational calibration sequence:
- Bobbin Case Isolation: Extract the bobbin case. Suspend the case by holding the thread end. Adjust the tension screw until the bobbin drops exactly 25–50mm only when the thread is gently shaken.
- Upper Disk Synchronization: Thread the machine completely, ensuring the strand seats fully within the polished primary tension disks. Lower the presser foot to engage the tension spring.
- Check Spring Configuration: Set the auxiliary take-up check spring to engage during the first 30% of the needle’s downward stroke. This prevents thread loops from forming before needle penetration.
4.The Engineering Specification Grid
| Physical Property Metric | Certified Laboratory Value | Workshop Execution Impact |
| Material Composition | Polyamide 6.6 Continuous Filament | Maximum molecular density and abrasion survival |
| Twist Construction | Z-Twist | Rotational compatibility with industrial hooks |
| Average Tensile Strength | 11.0 lbs (4.98 kg) | Structural threshold before physical rupture |
| Elongation Factor at Break | 22% – 28% | Controlled elasticity to prevent structural puckering |
| Recommended Needle Size | Size 16 – 18 (Metric 100 – 110) | Prevents eye friction and material shredding |
Application & Limitation Matrix
- Engineered Applications: Optimized for commercial automotive upholstery interiors, structural bolster piping, heavy footwear side-wall stitching, and 4oz to 8oz leather goods manufacturing.
- Systemic Limitations: Not certified for permanent outdoor marine canvas applications exposed to constant UV light. For continuous open-water environments, continuous filament bonded polyester must be deployed to prevent UV-induced structural breakdown. Do not attempt to run this consumable on domestic machinery using motors rated under 1.5 Amps, as it risks blowing internal circuit boards.
5.Secure Your Commercial Production Line
When executing heavy-volume structural sewing runs, avoid retail distributor markups by utilizing our direct-from-factory logistics loop. This pipeline delivers workshop supplies straight to your floor within 6–12 days. To secure your catalog requirements, purchase wholesale Tex 70 bonded nylon spools or explore our higher-gauge commercial stock by browsing our commercial grade Tex 90 bonded nylon inventory.
Every fulfillment order is backed by our strict physical photo 100% Color Match Guarantee, providing real-world verification to completely eliminate digital display errors before the shipment leaves the factory floor. Qualifying commercial orders over $99 USD automatically activate our free global shipping protocol at checkout.
